MCP---PaintController

Overview

MCP - PaintController, an innovative painting application that combines a user-friendly drawing interface with the power of the Model Context Protocol (MCP). This project allows users to create flows/diagrams using intuitive controls while leveraging MCP to integrate AI-driven features.

Project

• Using MCP, we use LLMs and prompting to generate output in iterations.
• The aim is to to manually convert an LLM into an Agent without using any framework. Using iterative prmpting we get an answer to query in 3 steps.
• In the end the output is to be pasted an application controlled via MCP.
• In our case we have used FreeForm (for Macos; could be MS Paint for Windows).
• We prompt our LLM to use right tools to open FreeFrom app, apply shapes, input text field and then finally right the output.

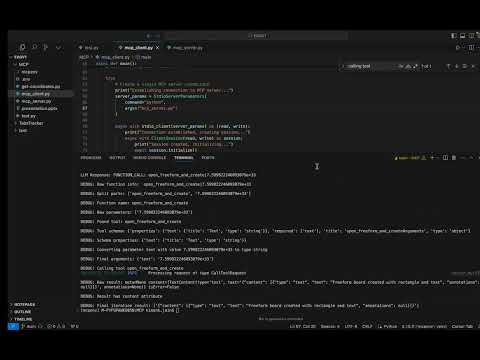

Demo

Code Details

Get Coordinates

We use below code to get the coordinates of the mouse pointer. This helps us determine where and what shapes to click when FreeForm app is open.

try:
    while True:
        x, y = pyautogui.position()
        print(f"Mouse position: x={x}, y={y}")
        time.sleep(1)
except KeyboardInterrupt:
    listener.stop()
    print('\nDone.')

MCP Server

This is the server file that enlists all the tools that our LLM can use. Below is the main code that opens FreeForm app, creates a rectangle and adds text inside it.

@mcp.tool()
async def open_freeform_and_create(text: str) -> dict:
    """Open Freeform app, create a rectangle and add text inside it"""
    try:
        # Ensure safe mouse movements
        pyautogui.FAILSAFE = True

        # Open Freeform using subprocess
        subprocess.run(['open', '-a', 'Freeform'])
        time.sleep(2)

        # Move to File menu and click
        pyautogui.moveTo(140, 6.25, duration=0.5)
        pyautogui.click()

        # Move to "New Board" option and click
        pyautogui.moveTo(144, 39, duration=0.5)
        pyautogui.click()
        time.sleep(1)

        # Select shape tool
        pyautogui.moveTo(908, 45, duration=0.5)
        pyautogui.click()

        # Select rectangle
        pyautogui.moveTo(909, 219, duration=0.5)
        pyautogui.click()

        # Move to rectangle
        pyautogui.moveTo(951, 409, duration=0.5)

        # Type the text
        time.sleep(0.5)
        pyautogui.typewrite(text)

MCP Client

This is the client file that uses MCP to send the query to the server.
